Rated insulation voltage: AC660V
Rated operational voltage: AC550V *400A: AC250V
Rated operational current (Ie): 32A, 50A, 100A, 160A, 250A, 400A
Kind of throw: Single throw
Number of poles: 3P
Connection: Front
Feature
・A quick-in/ quick-stop mechanism that opens and closes instantly regardless of the operating speed of the handle.
*Except for 32A
・Hand switch (short handle shaft) type is also available.

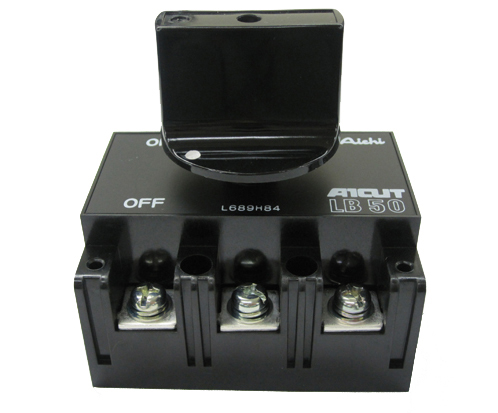

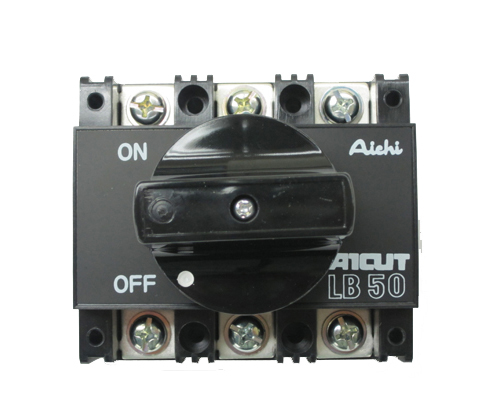

LB Series(Single throw)
*Catalog | View catalog / PDF |
---|---|
*Download | File download / ZIP |
Option
・Auxiliary switch: 1C *Hand switch type is not supported.
・Terminal protection cover (for 32A~400A)
・Terminal protection cover (for 32A~400A)
