Transfer switch contactors (Total: 4series.)

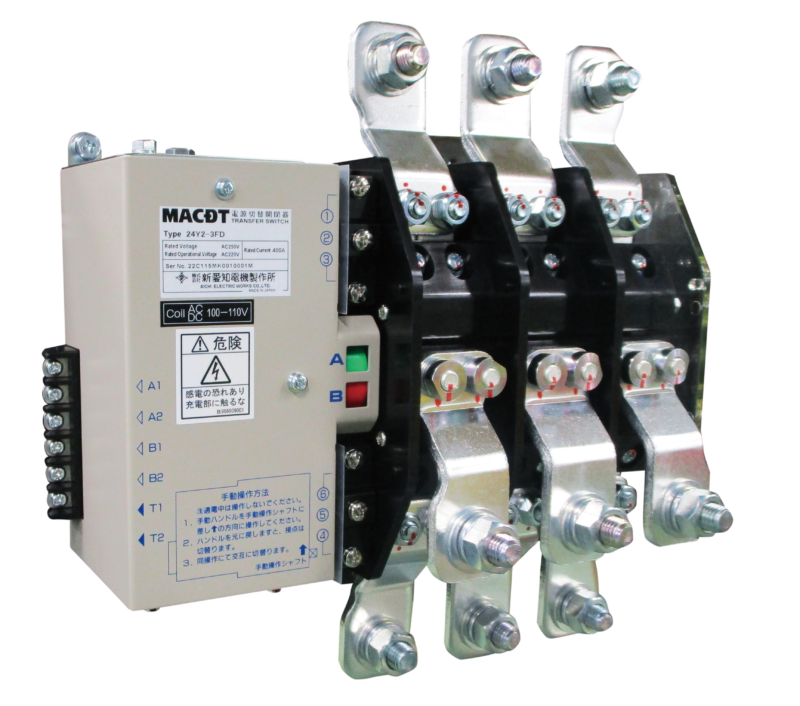

Y Series
Rated insulation voltage: AC250V
Rated operational voltage: AC220V
Rated operational current (Ie): 30A, 50A, 75A, 100A, 200A, 300A, 400A

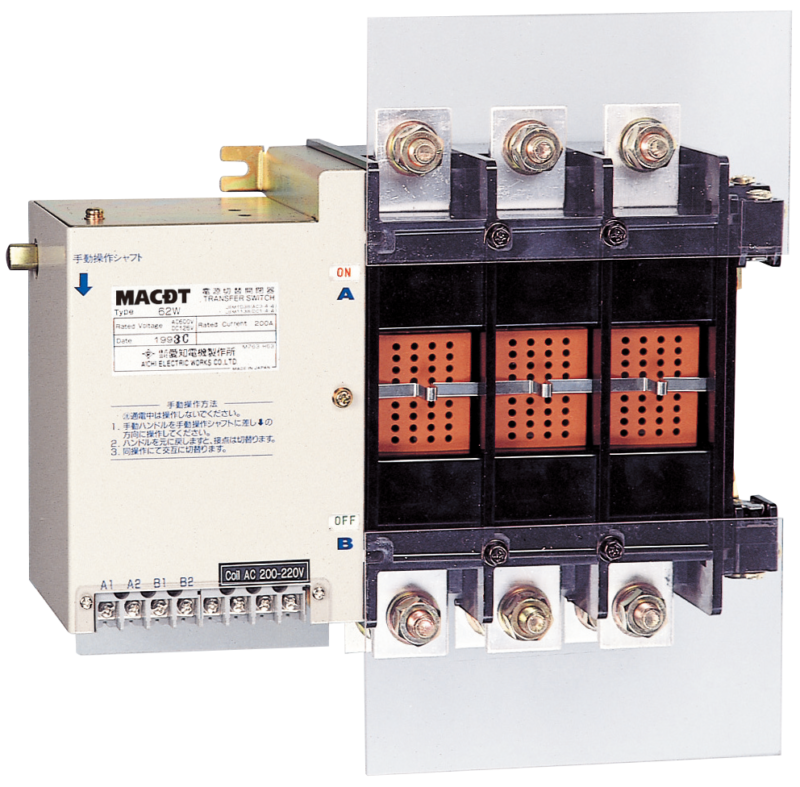

W2 Series
Rated insulation voltage: AC600V
Rated operational voltage: AC440V
Rated operational current (Ie): 100A, 200A, 400A, 600A, 800A, 1000A, 1200A, 1600A

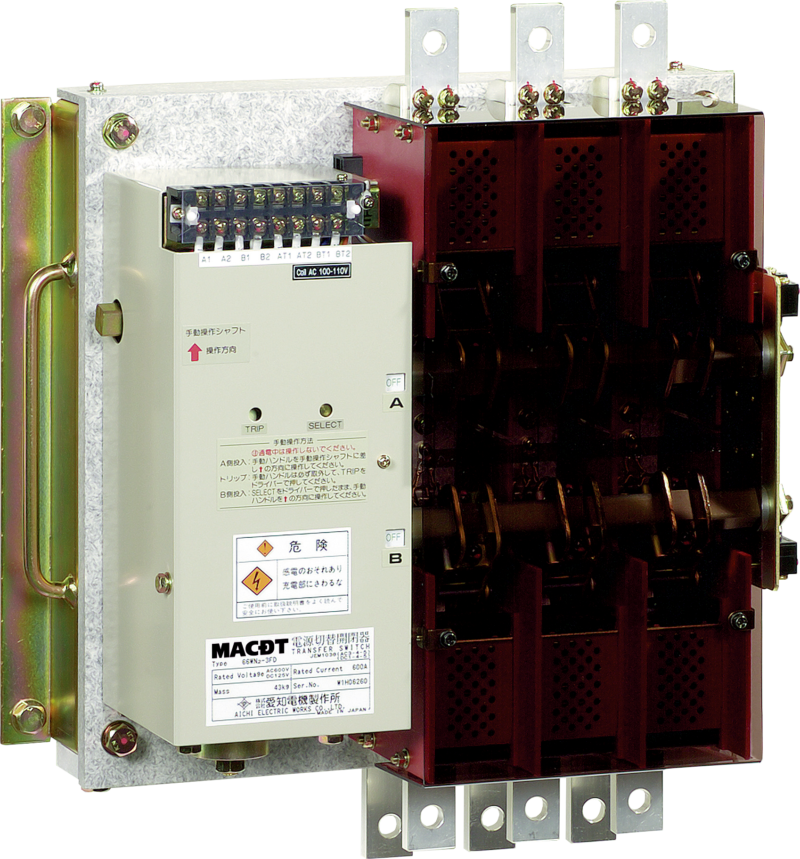

WN2 Series
Rated insulation voltage: AC600V
Rated operational voltage: AC440V
Rated operational current (Ie): 100A, 200A, 400A, 600A, 800A, 1000A, 1200A, 1600A, 2000A, 3000A
Feature
・With neutral(off) position and can be switched arbitrarily.
A→OFF→B A→OFF→A B→OFF→A B→OFF→B

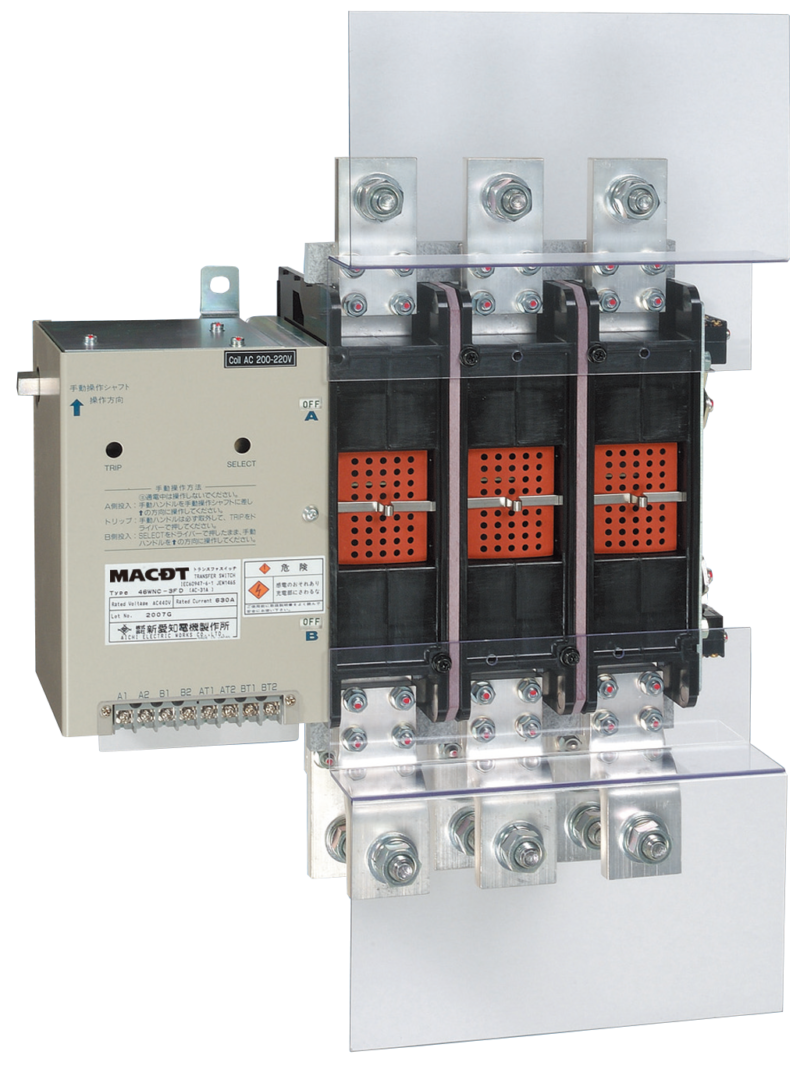

WC/WNC Series
Rated insulation voltage: AC600V
Rated operational voltage: AC440V
Rated operational current (Ie): 150A, 300A, 500A, 630A
Feature
・With neutral(off) position and can be switched arbitrarily.
(Only WNC Series.)
