Low-voltage manual load transfer switches (Total: 3series.)

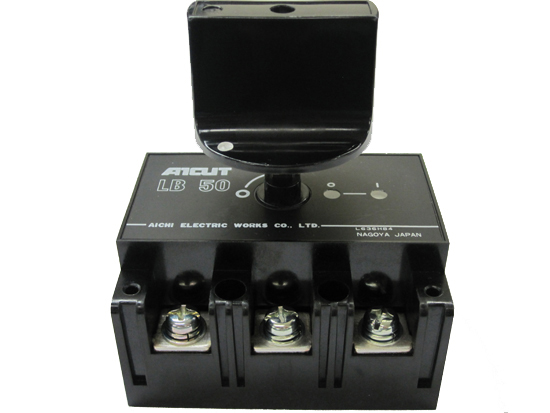

LB Series(Single throw)
Rated insulation voltage: AC660V
Rated operational voltage: AC550V *400A: 250V
Rated operational current (Ie): 32A, 50A, 100A, 160A, 250A, 400A
*Hand switch type(short handle shaft) is also available.
LBN○○D Series(double throw)
Rated insulation voltage: AC660V
Rated operational voltage: AC550V
Rated operational current (Ie): 100A, 250A, 400A, 630A, 1000A, 1600A

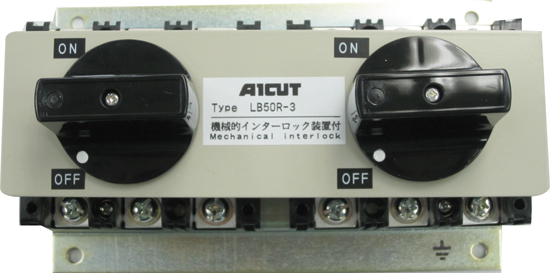

LB○○R Series(double throw)
Rated insulation voltage: AC660V
Rated operational voltage: AC550V *400A: AC250V
Rated operational current (Ie): 32A, 50A, 100A, 160A, 250A, 400A
